TS-1420
TAISAN
Soft key Sanding machine
1) This machine is a new type of piano key sanding machine based on the foreign advanced technology.
2) It can be used for processing material with large differences in thickness. The difference of the thickness can reach to 2mm (+/- 1mm allowed on the product line).
3) Each independent key unit can work as scheduled functional mode. The work pressure and contact time of each key unit are different according to different surface condition.There will be no damage on the corners or edges of the material.
4) Sectional polishing pad has a high compensation (max. 2mm) and a good sanding effect.
5)This model is mainly applied in the office furniture, plywood, painting surface, especially in polishing paneled doors and complicated process for plates with uneven thickness.
| Product Code | SQ-R1300 | SQ-R2000 |
| Max. Working Width | 1300mm | 2000mm |
| Min. Working Length | 400mm | 400mm |
| Max. Processing Height | 3-100mm | 3-100mm |
| Feeding Motor Power | 1.5KW | 2.2KW |
| Lifting Motor Power | 2 x 0.75KW | 2 x 0.75KW |
| Sanding Belt Driving Motor Power | 2 x 5.5KW | 2 x 5.5KW |
| Lining Belt Driving Motor Power | 2 x 3.0KW | 2 x 3.0KW |
| Total Motor Power | 20KW | 20.70KW |
| Machine Size | 2230 x 3950 x 1450mm | 2500 x 4650 x 1450mm |
ADVANTAGES:
1. Mitsubishi PLC control system
2. Double sander frame structure and double lining
3. Patented individual airbag
4. Indipendent electric box
5. SMC pneumatic components

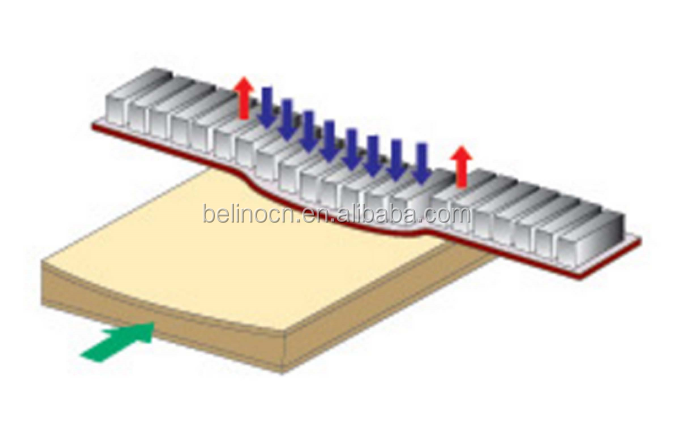

The unique structure of the air cylinder allows the keys be fully attached to the uneven surface of wood panels.
Piano key sanding machine for wood with sanding belt

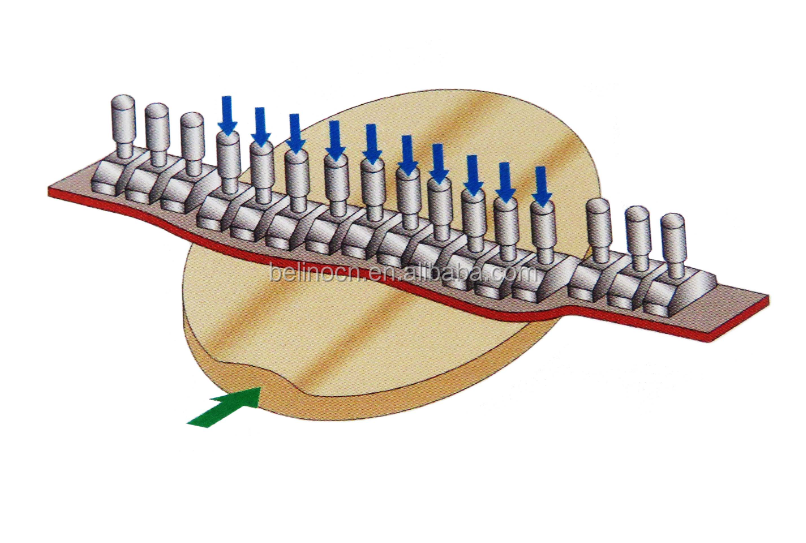

Piano key sanding pad can be used to process parts wIth different thickness. The difference of the thickness can reach to 2mm (+/- 1mm allowed on the product line).Plates with rough surface, such as panelled door, can also be processed, even in the same process.
Soft key Sanding machine
1) This machine is a new type of piano key sanding machine based on the foreign advanced technology.
2) It can be used for processing material with large differences in thickness. The difference of the thickness can reach to 2mm (+/- 1mm allowed on the product line).
3) Each independent key unit can work as scheduled functional mode. The work pressure and contact time of each key unit are different according to different surface condition.There will be no damage on the corners or edges of the material.
4) Sectional polishing pad has a high compensation (max. 2mm) and a good sanding effect.
5)This model is mainly applied in the office furniture, plywood, painting surface, especially in polishing paneled doors and complicated process for plates with uneven thickness.
| Product Code | SQ-R1300 | SQ-R2000 |
| Max. Working Width | 1300mm | 2000mm |
| Min. Working Length | 400mm | 400mm |
| Max. Processing Height | 3-100mm | 3-100mm |
| Feeding Motor Power | 1.5KW | 2.2KW |
| Lifting Motor Power | 2 x 0.75KW | 2 x 0.75KW |
| Sanding Belt Driving Motor Power | 2 x 5.5KW | 2 x 5.5KW |
| Lining Belt Driving Motor Power | 2 x 3.0KW | 2 x 3.0KW |
| Total Motor Power | 20KW | 20.70KW |
| Machine Size | 2230 x 3950 x 1450mm | 2500 x 4650 x 1450mm |
ADVANTAGES:
1. Mitsubishi PLC control system
2. Double sander frame structure and double lining
3. Patented individual airbag
4. Indipendent electric box
5. SMC pneumatic components
The unique structure of the air cylinder allows the keys be fully attached to the uneven surface of wood panels.
Piano key sanding machine for wood with sanding belt
Piano key sanding pad can be used to process parts wIth different thickness. The difference of the thickness can reach to 2mm (+/- 1mm allowed on the product line).Plates with rough surface, such as panelled door, can also be processed, even in the same process.
