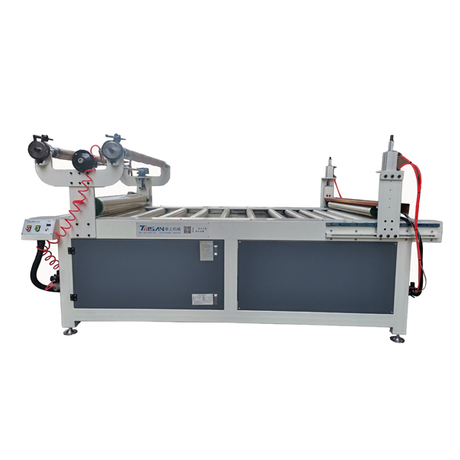

Laminating Machine:
Suitable products:
This machine is suitable for product surface laminating and laminating treatment
Working principle:
adopts pressure rollers laminating film on product surface and equipped with heating wire to cut film.
Advantage:
using heating wire equipment to cut film with high efficiency, air pump automatic cutting, no need hand control, saving labor.
Parameters:
model | TS-1420# |
Working width | 1320MM |
Working height | 2-80MM |
Min working length | 300MM |
Convey speed | 0-35M/MIN |
Cutting power | 600W |
Convey power | 1.5KW |
voltage | 380V50HZ |
Advantage:
1.This machine use air shaft to change film , convenient and efficient.
2.Using heating wire equipment to cut film with high efficiency, air pump automatic cutting, no need hand control, saving labor.
3.This machine completes from laminating to cutting film at one time.
4.The middle has a photoelectric switch to control the alignment delivery as well as the film lamination and cutting film with high accuracy and no waste of film.
