●Product Description:

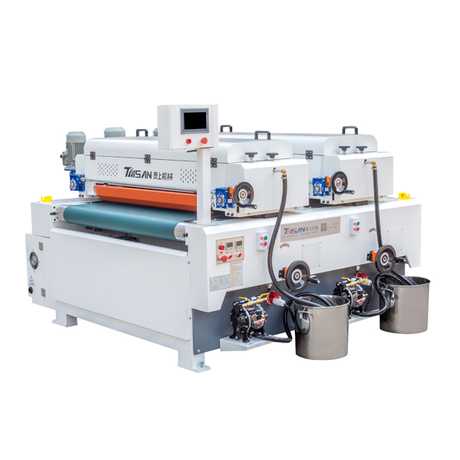

This machine is specially designed for the application of high gloss and semi glossy on flat surfaces.
This coating machine with separate pumps which is easy to do with different colors and no need to wash.
Product parameters:
| working width | 0-1300mm |
| products thickness | 0-80mm |
| Min products working length | 0-300mm |
| operation height | 900mm |
| total power | 7.5kw |
| voltage | 380v60hz |
| dimension | 2100*2600*1700 |
| weight | 1800kg |
| coating paint weight | 10-35g/m2 |
·Product Details:
1. the application rollers are laser roller.
2. All the rollers motor are SIEMENS.
3. The machine will separate pumps system, then can do two kinds of paint.
4. All the machine has the Anti-collision function.

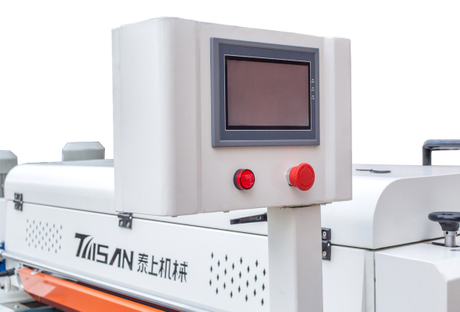

5. All the machine with the PLC touch screen, easy to control.
6. The casting for the all the parts is by CNC.
7. Widths can be from 320mm to 2550mm.
8. The lifting structure of the wheel is an automatic lifting structure.
