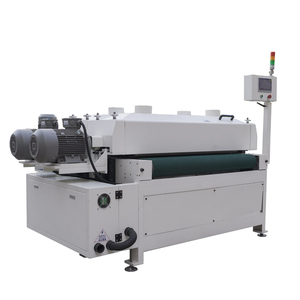

Roller Coater For Primer And Top Coating
Suitable product：
This machine is specially designed for furniture ,wooden doors ,floors, wooden boards, MDF and other tubular boards ,also can be used to fill the surface putty between the plywood.This is a multifunction roller coating machine, the functions such as putty filling , making transparent primer, making color primer, color top coat finish, high gloss finish, and matte finish. according to the process requirement, you can choose one roller to work or two roller working.
Working principle：
air pump circle the paint , roller coating uniformly to the flat board surface, filling roller scrape away the excess paint and recycle it.
Advantage：
This machine can fill in the concave pores ,or scrape away the excess paint and recycle it , eliminating manual filling ,greatly improving production efficiency ,reducing reworking, durable and environmentally friendly.
Duty putty filler
specification
model | TS-1420# |
Working width | 1320MM |
Working height | 2-80MM |
Min working length | 300MM |
Convey speed | 5-20M/MIN |
Coating roller power | 1.5KW |
Electric roller power | 0.75KW |
Filling roller power | 0.75KW |
Paint type | UVpaint |
voltage | 380V50HZ |
Advantage:
1.This machine is specially designed for furniture ,wooden doors ,floors, wooden boards, MDF and other tubular boards ,also can be used to fill the surface putty between the plywood.
2.air pump circle the oil , roller coating uniformly to the flat board surface, filling roller scrape away the excess paint and recycle it. ；
3.This machine can fill in the concave pores ,or scrape away the excess paint and recycle it , eliminating manual filling ,greatly improving production efficiency ,reducing reworking, durable and environmentally friendly.
4.Equipped with anti-collision induction device to effectively prevent damage to rubber wheels caused by stacked plates.
5.This machine adopts double-pole reducer for flattening steel wheel. The flattening strength is greater and the effect is better
